| Power |
|---|
| Output voltage regulation | 3% |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 10000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output power capacity | 10000 VA |
| Efficiency (On-line mode) | 95% |
| Single-phase input voltage supported | 220,230,240 V |
| Battery |
|---|
| Battery type | VRLA |
| Number of batteries supported | 16 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 7 min |
| Typical backup time at full load | 2 min |
| Hot-swap battery | Yes |
| Battery recharge time(90%) | 5 h |
| Performance |
|---|
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overload |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Overload capacity (1 minute) | 150% |
| Overload capacity (5 minute) | 125% |
| Features |
|---|
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Output voltage regulation | 3% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 10000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 95% |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overload |
| Power factor | 1 |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 10000 VA |
| Overload capacity (1 minute) | 150% |
| Overload capacity (5 minute) | 125% |
| Efficiency (On-line mode) | 95% |
| Single-phase input voltage supported | 220,230,240 V |
| Input frequency | 50/60 Hz |

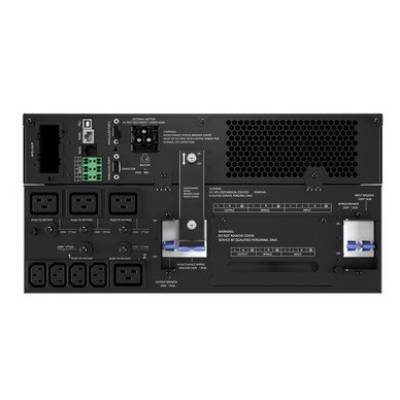

| Ports & interfaces |
|---|
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler,C19 coupler,IEC 320,Terminal |
| Power plug | Terminal |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Design |
|---|
| International Protection (IP) code | IP20 |
| Rack capacity | 5U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Safety | IEC62040-1:2008 |
| Display | LCD |
| Cooling type | Active |
| Certification | CE, EMI/EMC/C-Tick EMC, ESD |
| RoHS compliance | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 – 40 C |
| Storage temperature (T-T) | -15 – 40 C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Technical details |
|---|
| Output voltage | 230 V |
| Output frequency | 50/60 Hz |
| Cooling |
|---|
| Cooling type | Active |
| Weight & dimensions |
|---|
| Weight | 74.5 kg |
| Width | 430 mm |
| Height | 217 mm |
| Depth | 630 mm |
| Package width | 646 mm |
| Package depth | 816 mm |
| Package height | 520 mm |
| Package weight | 93 kg |
| Packaging data |
|---|
| Package width | 646 mm |
| Package depth | 816 mm |
| Package height | 520 mm |
| Package weight | 93 kg |
| Certificates |
|---|
| Safety | IEC62040-1:2008 |
| Certification | CE, EMI/EMC/C-Tick EMC, ESD |
| RoHS compliance | Yes |
| Other features |
|---|
| Output voltage | 230 V |
| Battery type | VRLA |
